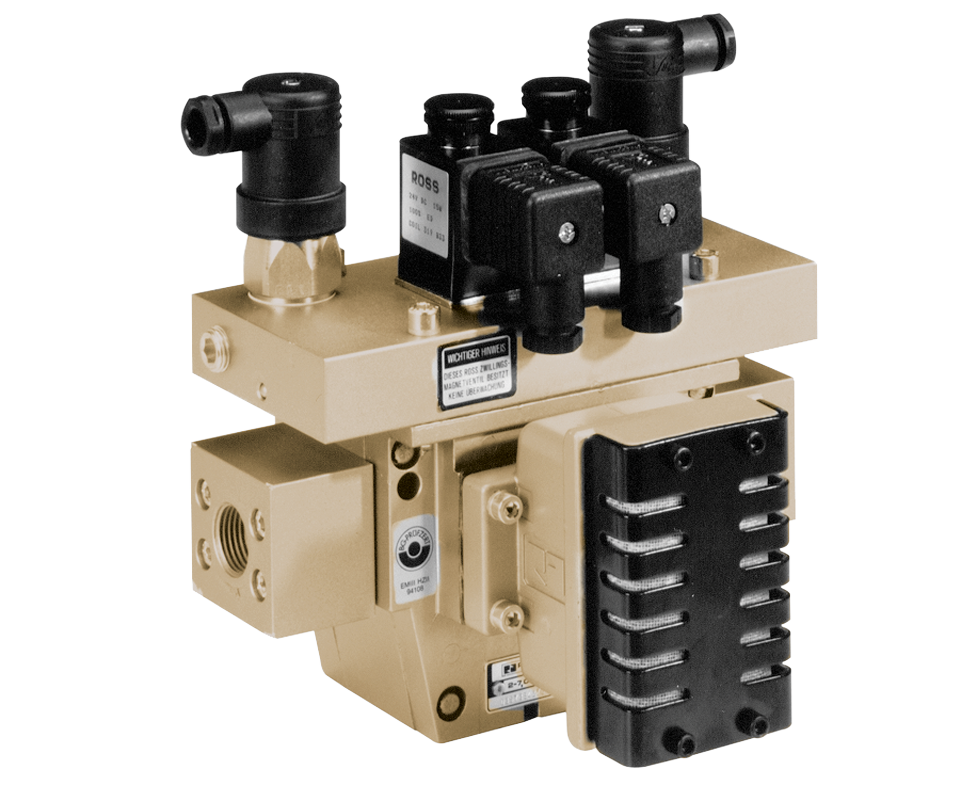

Double Valves with Pressure Switches, Ports 3/8 to 1-1/2 3573C5236Z
- Designed to enable users to comply with current safety regulations
- Can be integrated with external monitoring systems to provide for lockout and inhibiting further machine operation until the controls system is reset
- Default to de-energized position upon fault condition
Product Information
| Port Size (In) | 3/4" |
| Port Size (Out) | 3/4" |
| Port Size (Exhaust) | Built in Silencer |
| Port Thread | NPT |
| Cv (Exhaust) | 11 |
| Cv (In-Out) | 3 |
| Voltage | 120 VAC |
| Mounting Type | In-line |
| Inlet Side | Left Side |
| Status Indicator | Pressure Switch |
| Monitor Type | Externally Monitored |
| Override | Without Override |
| Reset Type | N/A |
| Input to Main Solenoid | Independent |
| Switches for External Monitoring | Pressure Switches Included |
| Solenoid Connection | DIN |
| Status Indicator Connection | N/A |
+
Double Valves with Pressure Switches, Ports 3/8 to 1-1/2
3573C5236Z
Contact Us for a 3D Model
+
Double Valves with Pressure Switches, Ports 3/8 to 1-1/2
3573C5236Z
Contact ROSS UK for Ordering Information
+
